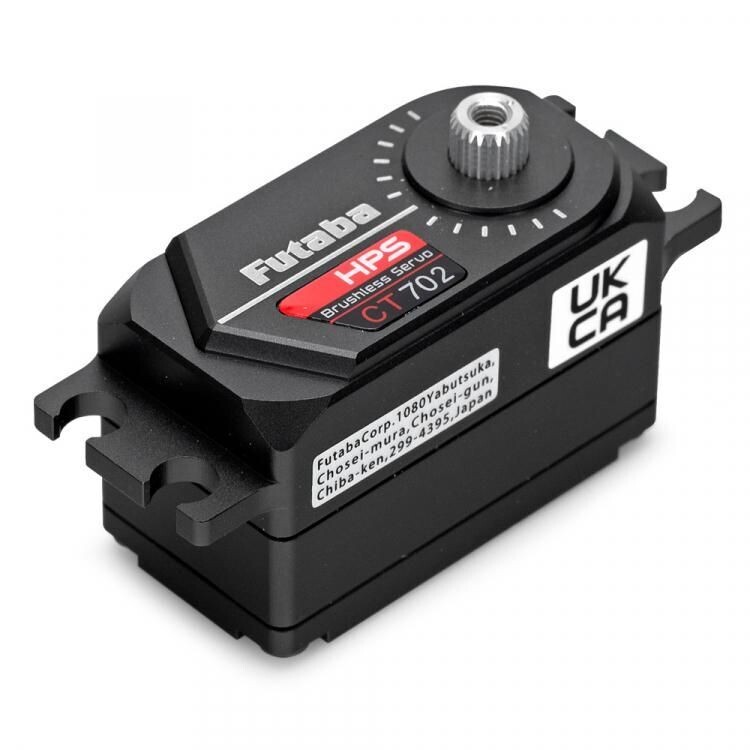

FUTABA HPS CT702 RC 0,07/30kg HV Servo

Futaba HPS-CT702 – S.Bus2 High-Voltage Low-Profile Surface Servo

High-Performance Servo with Brushless Motor

FEATURES:

Suitable for RC cars 1/10 scale on/off road and drifting

Programmable/HV Brushless Servo

Custom New high power Brushless Motor

Supports SR mode (Super Response) with T4PM/T7PX/T10PX

Programmable and compatible with S.Bus and S.Bus2 systems

Can be connected to a PC using the CIU-2/-3 USB adapter sold separately.

Upper/middle/bottom: Aluminum Case

Specs:

Speed: 0.07sec/60° @ 7.4V / 0.08sec/60° @ 6V

Torque: 30kg/cm @ 7.4V / 23kg/cm @ 6V

Servo Size: Low profile Standard

Dimensions: 40.5x21x26.2mm

Weight: 53g

Rated Voltage: 6-7.4V

Operating Voltage: 4.8-8.4V

Technische Daten:

• Hersteller: Futaba
• Servotyp: Low Profile
• Technologie: Digital
• HV: ja
• Länge [mm]: 40,5
• Breite [mm]: 21,0
• Höhe [mm]: 26,2
• Gewicht [g]: 53,0
• Min. Betriebsspannung [V]: 4,8
• Max. Betriebsspannung [V]: 8,4
• Stellzeit bei 7,4V (2 Zellen) [Sek/60°]: 0,0700
• Stellkraft bei 7,4V (2 Zellen) [kg/cm]: 23,00
• Mittenimpuls [µs]: 1520
• Motortyp: Brushless
• Anzahl Kugellager: 3
